ＬＦＬ-300Ｅ [ＳＴＲＡＩＧＨＴＥＮＥＲ　ＦＥＥＤＥＲ]

ＬＦＬ-300Ｅ
・Openings in the frame both above and below the work rolls enable easy cleaning of the rolls, which greatly reduces scoring marks on the material.
・A handle is provided to adjust the entry side-guide front and rear guide rolls, and thus no tools are required.
・The hold-down pressure can be stored as a memo in the recipe databank.This enables operators to input uniform settings for each product, which helps improve quality.

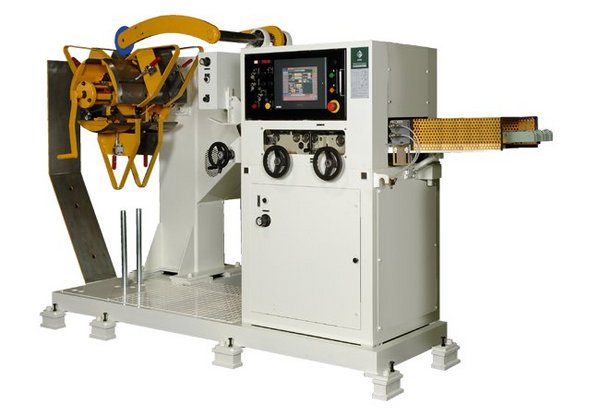

Photograph

Material Width[mm]
30 - 160
30 - 110
Material Thickness[mm]
0.3 - 2.3
0.3 - 3.2
Coil Weight(MAX)[kg] 1200 × 1
Coil O.D.[mm] φ800 - φ1200
Coil I.D.[mm] φ508
Feed Length[mm] 10 - 300
Feed Speed[m/min]  - 15
No. of Work Rolls Up:3 / Down:3
Passline Height[mm] 1100
Power Source Capacity[kVA] 6
Required Power Source[V,HZ] AC 200/220, 50/60 Hz, 3-phase
Required Air Pressure[MPa] 0.5
Standard Equipment Feed Angle Selection（180°/240°）
Material End Detection
Auto Release Device (With Advance Angle Function)
Work Roll Cleaning Feature
Plated Work Rolls
Optional Equipment Auto-Threading
Backstop Rolls
Material oil coating device
Micro Feeder
Motorized Nibbler/Shear
