Basic electrical Wire Auto-Measuring and Cutting Equipment [Electrical Wiring Cutter]

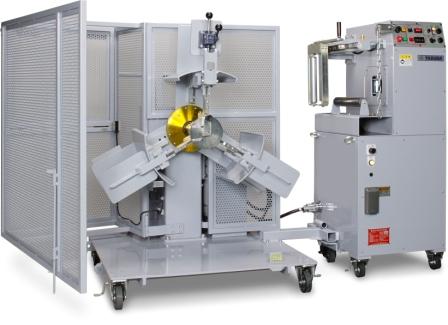

Basic electrical Wire Auto-Measuring and Cutting Equipment
Measures and coils electrical wires.
After the wire is coiled, it is cut using a manual cutter.
(We ask that the customer supply this manual cutter.However, we can supply this upon request.)
Wire cutting cannot be done using the payout equipment alone using just the coiling function.
Applicable Wire Type 2SV、3SV、2DV、3DV、SNOE、SNOC、SNOW,SNHAL-OC,ACSR-SNOE、ACSR-ANOW,etc
Max. Coiling Wire O.D.[mm] φ50
Coiling Speed[m/min] 14～30（via volume adjustment）
Wire Meaasuring Accuracy[%] 0～+2
Max. Coiling O.D.[mm] φ600
Coiling Width[mm] 300
Max. Coiling Weight[kg] 200
External Dimensions and Weight
Total Length[mm] 520
Total Width[mm] 520
Total Height[mm] 1300
Weight[kg] 230
Winding Equipment
Total Length[mm] 1273
Total Width[mm] 1356
Total Height[mm] 1300
Weight[kg] 325
When Used Together
Total Length[mm] 1273
Total Width[mm] 1891
Total Height[mm] 1300
Weight[kg] 555
