Pilers & Product Conveyors
Sales Point

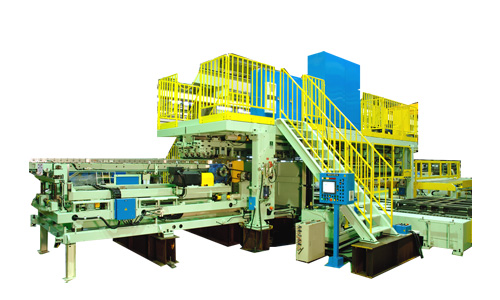

Equipment that automatically aligns and stacks metal sheets that have been formed in a press or cut by a shear.
Piling methods include free-fall piling and preset position (perpendicular) drop piling via a magnetic belt conveyor, and we leverage our proven track record of piler installations to offer a diverse array of piling systems.
The magnetic belt conveyor method especially has a proven track record as a piling system suited for stacking automotive exterior body panels.
Piling methods include free-fall piling and preset position (perpendicular) drop piling via a magnetic belt conveyor, and we leverage our proven track record of piler installations to offer a diverse array of piling systems.
The magnetic belt conveyor method especially has a proven track record as a piling system suited for stacking automotive exterior body panels.
Ability Lineup
Our pilers can accommodate workpiece sizes as large as 4000 x 1830 mm and as small as 150 x 300 mm, and also plate thicknesses up to 6 mm.
| Model | Material Dimensions(LR*FB) [mm] |
Material Thickness [mm] |
Material Weight [kg] |
Stacking Height [mm] |
|
|---|---|---|---|---|---|
| ＢＰ-200160-Ｍ1Ｃ |  |
2000×1850 - 150×300 | 3.2 - 0.6 | 5 | 500 |
