LF Series

LF Series
Sales Point

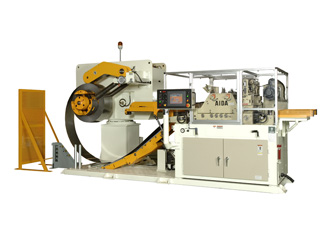

A reliable and proven next-generation straightener feeder that is recommended by a forming systems builder.
A common HMI for the press and feeder is possible.Even while standing at the press you can check feeder information and make changes to the feeder settings.
The 10.4” color LCD touchscreen provides superior operability.
The rolls can be easily cleaned.
Ability Lineup
We have products that accommodate material widths ranging from 30 mm to 1100 mm.
Our products accommodate a maximum material thickness of 8 mm.

Search

Model Material Width
[mm]		 Material Thickness
[mm]		 Coil Weight
[kg]		 Coil O.D.
[mm]		 Coil I.D.
[mm]		 Feed Length
[mm]		 Feed Speed
[m/min]
ＬＦＨ-800Ｒ ＬＦＨ-800Ｒ 70-800 1-4 2-3000 φ800-φ1500 φ508 10-500 -20
ＬＦＨ-600Ｒ ＬＦＨ-600Ｒ 70-600 1-5 2-3000 φ800-φ1500 φ508 10-500 -20
ＬＦＨ-400Ｒ ＬＦＨ-400Ｒ 70-400 1-7 2-3000 φ800-φ1500 φ508 10-500 -20
ＬＦＵ-600Ｅ ＬＦＵ-600Ｅ 70-600 2-4 1-3000 φ800-φ1500 φ508 10-500 -22
ＬＦＵ-400Ｅ ＬＦＵ-400Ｅ 70-400 2-6 1-3000 φ800-φ1500 φ508 10-500 -22
ＬＦＧ-600Ｒ-Ｚ ＬＦＧ-600Ｒ-Ｚ 70-600 0.5-6 2-3000 φ800-φ1500 φ508 10-500 -25
ＬＦＧ-400Ｒ-Ｚ ＬＦＧ-400Ｒ-Ｚ 70-400 0.5-4.5 2-3000 φ800-φ1500 φ508 10-500 -25
ＬＦＧ-900Ｒ ＬＦＧ-900Ｒ 100-900 0.5-2 2-3000 φ800-φ1500 φ508 10-500 -25
ＬＦＧ-900Ｅ ＬＦＧ-900Ｅ 100-900 0.5-4.5 1-3000 φ800-φ1500 φ508 10-500 -25
ＬＦＧ-800Ｒ ＬＦＧ-800Ｒ 100-600 0.5-2.3 2-3000 φ800-φ1500 φ508 10-500 -25
ＬＦＧ-800Ｅ ＬＦＧ-800Ｅ 100-800 0.5-6 1-3000 φ800-φ1500 φ508 10-500 -25
ＬＦＧ-600Ｒ ＬＦＧ-600Ｒ 70-600 0.5-3.2 2-3000 φ800-φ1500 φ508 10-500 -25
ＬＦＧ-600Ｅ ＬＦＧ-600Ｅ 70-600 0.5-6 1-3000 φ800-φ1500 φ508 10-500 -25
ＬＦＧ-400Ｒ ＬＦＧ-400Ｒ 70-400 0.5-4.5 2-3000 φ800-φ1500 φ508 10-500 -25
ＬＦＧ-400Ｅ ＬＦＧ-400Ｅ 70-400 0.5-4.5 1-3000 φ800-φ1500 φ508 10-500 -25
ＬＦＭ-600Ｅ-Ｚ ＬＦＭ-600Ｅ-Ｚ 50-600 0.4-3.2 1-3000 φ800-φ1200 φ508 10-400 -18
ＬＦＭ-500Ｅ-Ｚ ＬＦＭ-500Ｅ-Ｚ 50-500 0.4-3.2 1-2000 φ800-φ1200 φ508 10-400 -18
ＬＦＭ-400Ｅ-Ｚ ＬＦＭ-400Ｅ-Ｚ 50-400 0.4-3.2 1-2000 φ800-φ1200 φ508 10-400 -18
ＬＦＭ-600Ｅ ＬＦＭ-600Ｅ 50-600 0.4-1 1-2000 φ800-φ1200 φ508 10-400 -18
ＬＦＭ-500Ｅ ＬＦＭ-500Ｅ 50-500 0.4-1.4 1-2000 φ800-φ1200 φ508 10-400 -18
ＬＦＭ-400Ｅ ＬＦＭ-400Ｅ 50-400 0.4-2 1-2000 φ800-φ1200 φ508 10-400 -18
LFL-400E-Z LFL-400E-Z 30-400 0.3-3.2 2-1200 φ800-φ1200 φ508 10-300 -15
LFL-300E-Z LFL-300E-Z 30-300 0.3-3.2 1-1200 φ800-φ1200 φ508 10-300 -15
ＬＦＬ-400Ｒ ＬＦＬ-400Ｒ 30-400 0.3-1.2 2-1200 φ800-φ1200 φ508 10-300 -15
ＬＦＬ-400Ｅ ＬＦＬ-400Ｅ 30-400 0.3-1.2 1-1200 φ800-φ1200 φ508 10-300 -15
LFL-300R LFL-300R 30-300 0.3-300 2-1200 φ800-φ1200 φ508 10-300 -15
ＬＦＬ-300Ｅ ＬＦＬ-300Ｅ 30-300 0.3-1.6 1-1200 φ800-φ1200 φ508 10-300 -15
