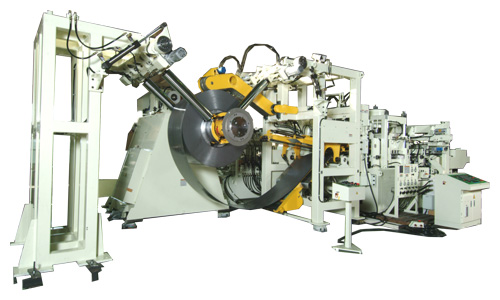

Large LF Series
Sales Point
Provides superior feeding of thick and wide coil materials to progressive and blanking press lines.
Ability Lineup
We have products that accommodate material widths ranging from 200 mm to 1850 mm.
Our products accommodate a maximum material thickness of 12 mm.
Our products accommodate a maximum material thickness of 12 mm.
| Model | Material Width [mm] |
Material Thickness [mm] |
Coil Weight [t] |
Coil O.D. [mm] |
Coil I.D. [mm] |
|
|---|---|---|---|---|---|---|
| ＬＦＨ-Ⅱ-1600 |  |
200 - 1600 | 0.5 - 3.2 | 12 | φ750 - φ1800 | φ610 |
| ＬＦＸ-1600 | |
200 - 1600 | 0.5 - 2.8 | 12 | φ750 - φ1800 | φ508 |
| ＬＦＨ-Ⅱ-1300 | |
300 - 1300 | 0.5 - 4.5 | 10 | φ600 - φ1600 | φ508 |
