F-40Ⅲ [NC Roll Feeder]

F-40Ⅲ
Optimal acceleration is automatically calculated and controlled based on the inputted feed length and the SPM setting values.
Hard chrome plated feed rolls are standard.

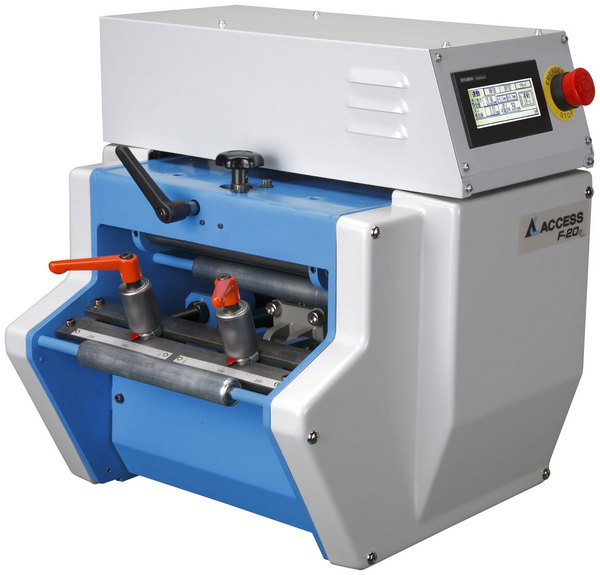

Photograph

Material Width[mm]
30 - 200
30 - 150
Material Thickness[mm]
0.3 - 2.3
0.3 - 3.2
Feed Length[mm] 1 - 9999.99
Feed Accuracy[mm] ±0.1 or less
Passline Height[mm] 100 - 200
Power Source Capacity[kVA] 2.5
Required Power Source[V,HZ] AC 200/220, 50/60 Hz, 3-phase
Required Air Pressure[MPa] 0.5
Standard Equipment Air Release
Standard mounting plates
Hard chrome plated rolls
Optional Equipment Special mounting plates
Entry apron rolls
Feeder Master
