Two-Die Rear Cross-T Type [Die Changer]

Two-Die Rear Cross-T Type
Because the two-die type allows the next die to be set up on the rear cart, the die in the press can be replaced with this fully prepped next die, which enables faster die changes.
Press maintenance is also enhanced when using the flip-up rail.

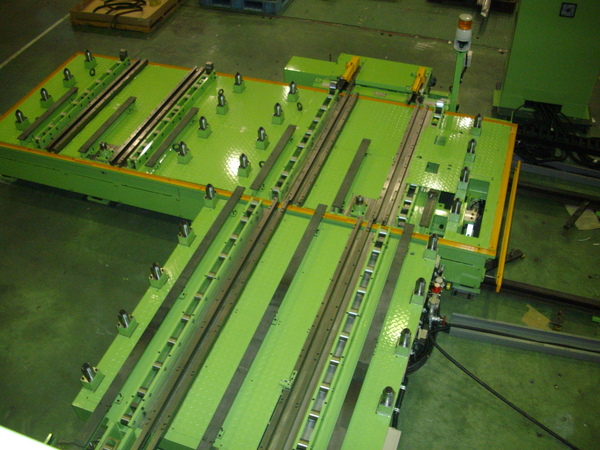

Photograph

Die Size[mm] 2450×1200
Tooling Die Weight[kg] 10000×2
Die Loading Quantity 2
Traveling Height[mm] 742
Travel Distance[m] 2.7
Traveling Speed[m/min] 10
Type Rear cross-T two-die loading method
Transfer Speed[m/min] 10
