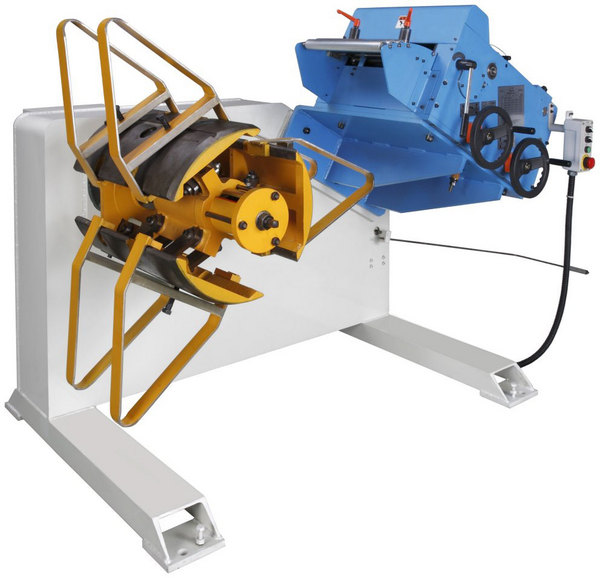

L-30 [Uncoiler / straightener]
L-30

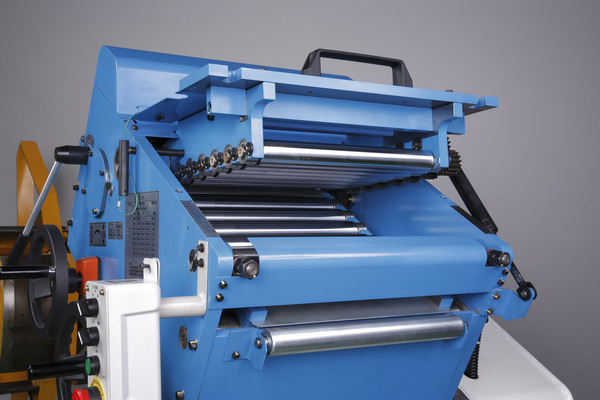

・The straightener’s aperture feature lifts the upper work rolls high to allow easy access to the rolls for cleaning, thereby greatly reducing surface scoring on the coil material.
Photograph
| Material Width[mm] |
30 - 200
30 - 95
30 - 50
|
| Material Thickness[mm] |
0.3 - 1.6
0.3 - 2.3
0.3 - 3.2
|
| Coil Weight(MAX)[kg] |
1200 × 1 |
| Coil O.D.[mm] |
- φ1200 |
| Coil I.D.[mm] |
φ508 |
| Feed Speed[m/min] |
1.8 - 18 |
| No. of Work Rolls |
Up:6 / Down:6 |
| Required Power Source[V,HZ] |
AC 200/220, 50/60 Hz, 3-phase |
|
| Standard Equipment |
All rolls are plated with hard chrome
Auto-control of straightener speed
Work ｒoll cleaning feature
|
| Optional Equipment |
Plated drum surface
Fixed lever-lock sideplates
Coil Hold-Down
Material end detection device
|
