L-30W [Uncoiler / straightener]

L-30W

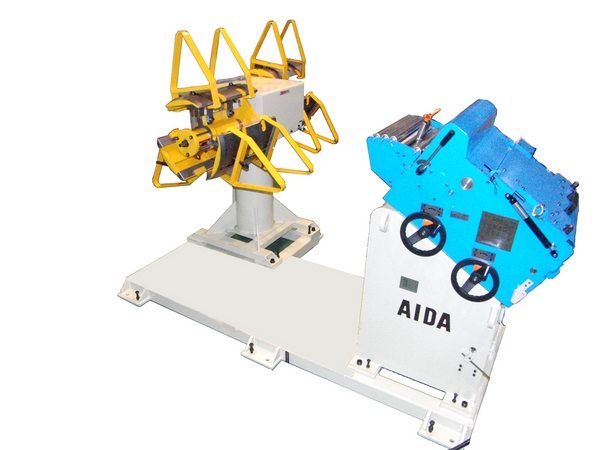

・The double uncoiler contributes to higher productivity by enabling the offline setup of new coils.

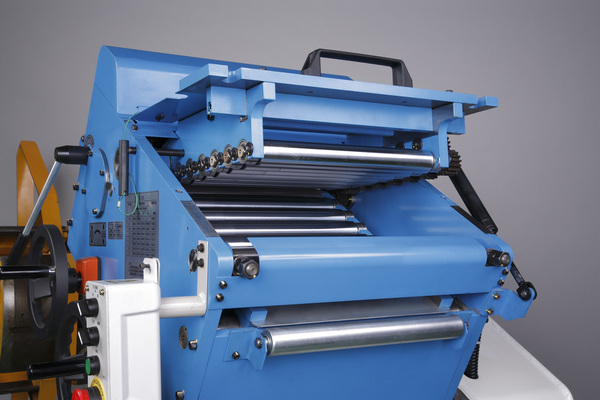

・The straightener’s aperture feature lifts the upper work rolls high to allow easy access to the rolls for cleaning, thereby greatly reducing surface scoring on the coil material.

Photograph

Material Width[mm]
30 - 200
30 - 95
30 - 50
Material Thickness[mm]
0.3 - 1.6
0.3 - 2.3
0.3 - 3.2
Coil Weight(MAX)[kg] 1200 × 2
Coil O.D.[mm]  - φ1200
Coil I.D.[mm] φ508
Feed Speed[m/min] 1.8 - 18
No. of Work Rolls Up:6 / Down:6
Required Power Source[V,HZ] AC 200/220, 50/60 Hz, 3-phase
Standard Equipment All rolls are plated with hard chrome
Auto-control of straightener speed
Work ｒoll cleaning feature
Optional Equipment Plated drum surface
Fixed lever-lock sideplates
Coil Hold-Down
Material end detection device
