LFL-400E-Z [ＳＴＲＡＩＧＨＴＥＮＥＲ　ＦＥＥＤＥＲ]

LFL-400E-Z
・The zigzag feed function lowers costs by reducing scrap.
・The double uncoiler contributes to higher productivity by enabling the offline setup of new coils.
・The zigzag feed function lowers costs by reducing scrap.
・Openings in the frame both above and below the work rolls enable easy cleaning of the rolls, which greatly reduces scoring marks on the material.

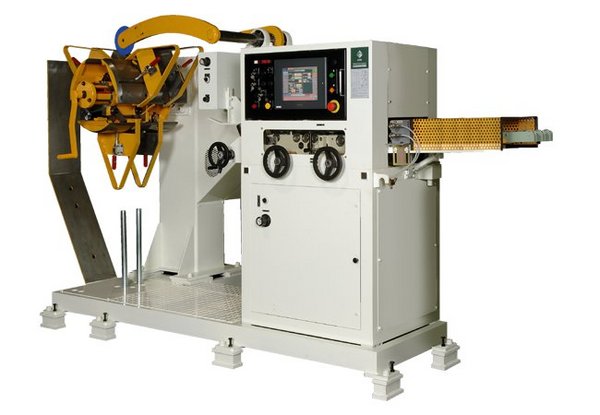

Photograph

Material Width[mm]
30 - 400
30 - 150
30 - 70
Material Thickness[mm]
0.3 - 1.2
0.3 - 2.3
0.3 - 3.2
Coil Weight(MAX)[kg] 1200 × 2
Coil O.D.[mm] φ800 - φ1200
Coil I.D.[mm] φ508
Feed Length[mm] 10 - 300
Feed Speed[m/min]  - 15
No. of Work Rolls Up:3 / Down:3
Passline Height[mm] 1100
Zigzag Feed Performance[spm] 44
Two-Out Zigzag Stroke[mm] 0～200
Three-Out Zigzag Stroke[mm] 0～270
Required Power Source[V,HZ] AC 200/220, 50/60 Hz, 3-phase
Required Air Pressure[MPa] 0.5
Standard Equipment Feed Angle Selection（180°/240°）
Material End Detection
Auto Release Device (With Advance Angle Function)
Work Roll Cleaning Feature
Plated Work Rolls
Optional Equipment Auto-Threading
Backstop Rolls
Material oil coating device
Micro Feeder
Motorized Nibbler/Shear
