ＬＦＧ-400Ｒ [ＳＴＲＡＩＧＨＴＥＮＥＲ　ＦＥＥＤＥＲ]

ＬＦＧ-400Ｒ
・The double uncoiler contributes to higher productivity by enabling the offline setup of new coils.
・Semi-automatic threading enables the automatic threading of coil material from the uncoiler up to the die.
・The work rolls can be accessed via a simple 10-minute manual operation, making it easy to clean them.
・The frame covers are designed to improve operability and maintainability.

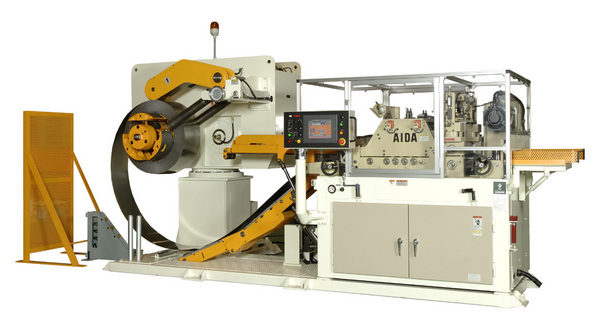

Photograph

Material Width[mm]
70 - 380
70 - 300
Material Thickness[mm]
0.5 - 5
0.5 - 6
Coil Weight(MAX)[kg] 3000 × 2
Coil O.D.[mm] φ800 - φ1500
Coil I.D.[mm] φ508
Feed Length[mm] 10 - 500
Feed Speed[m/min]  - 25
No. of Work Rolls Up:4 / Down:4
Passline Height[mm] 1200
Power Source Capacity[kVA] 31
Required Power Source[V,HZ] AC 200/220, 50/60 Hz, 3-phase
Required Air Pressure[MPa] 0.5
Standard Equipment Feed Angle Selection（180°/240°）
Material End Detection
Auto Release Device (With Advance Angle Function)
Work Roll Cleaning Feature
Plated Work Rolls
Optional Equipment Auto-Threading
Backstop Rolls
Material oil coating device
Micro Feeder
Motorized Nibbler/Shear
