ＬＦＨ-600Ｒ [ＳＴＲＡＩＧＨＴＥＮＥＲ　ＦＥＥＤＥＲ]

ＬＦＨ-600Ｒ
・The double uncoiler contributes to higher productivity by enabling the offline setup of new coils.
・Semi-automatic threading enables the automatic threading of coil material from the uncoiler up to the die.
・The work rolls can be accessed via a simple 10-minute manual operation, making it easy to clean them.
・The aluminum-frame transparent covers improve operability and maintainability.
・The release position of the rolls is automatically calculated.

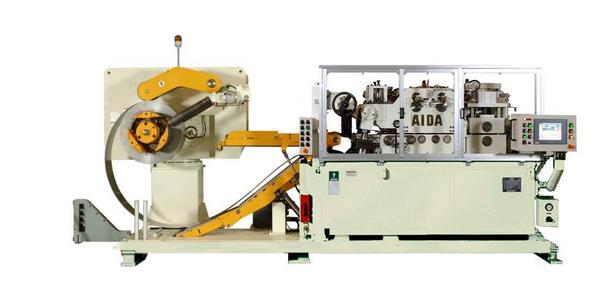

Photograph

Material Width[mm]
70 - 320
70 - 250
Material Thickness[mm]
1 - 7
1 - 8
Coil Weight(MAX)[kg] 3000 × 2
Coil O.D.[mm] φ800 - φ1500
Coil I.D.[mm] φ508
Feed Length[mm] 10 - 500
Feed Speed[m/min]  - 20
No. of Work Rolls Up:4 / Down:4
Passline Height[mm] 1200
Power Source Capacity[kVA] 66
Required Power Source[V,HZ] AC 200/220, 50/60 Hz, 3-phase
Required Air Pressure[MPa] 0.5
Standard Equipment Auto-Threading
Semi Auto-Threading
Coil Opener
Work ｒoll cleaning feature
Plated Work Rolls
Optional Equipment Full Auto-Threading
Oiling unit
Coil Car
