VF-60140 [Destack Feeder]

VF-60140
Destack feeders that can accommodate a diverse range of blanks, including blanks with unusual shapes, large blanks, and tailored blanks.
Each function can be automatically positioned via the recipe databank controls based on the shape of the blank.
The blank centering function can correct the positioning of the blank.
When a double blank is detected it can be automatically ejected without stopping production.

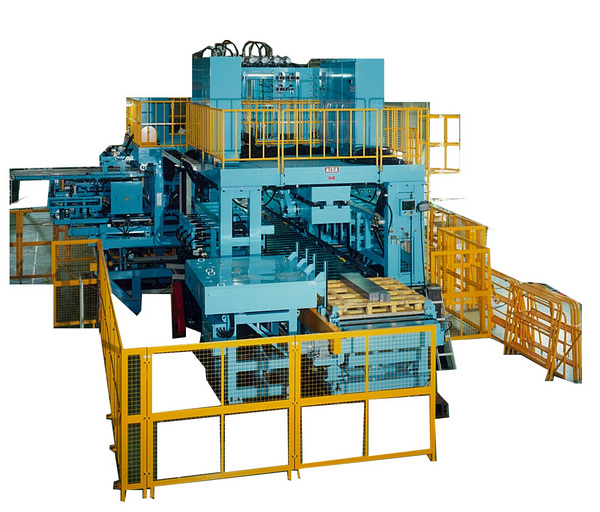

Photograph

Blank Dimensions(L-R)*(F-B)[mm] 150×450 - 600×1400
Blank Thickness[mm] 0.4~3.2
Blank Weight[kg] 10
Blank Feed Frequency[spm] 30
Blank Stacking Height[mm] 400
Blank Stacking Weight[kg] 2500
Number of Blank Stacking 3
Blank transfer method Magnetic belt conveyor type
Stack Transfer Method Unidirectional non-cyclical conveyor type
Fixed Quantity Holding Device Auto fork type
Double blank separator Magnet type
