ＬＦＵ-400Ｅ [ＳＴＲＡＩＧＨＴＥＮＥＲ　ＦＥＥＤＥＲ]

ＬＦＵ-400Ｅ
・This direct feeder does not require a loop, which allows the feeding of thick coil materials even in a limited space.
・The efficient end-bending device, the frame covers, and the sub-operation panel in the uncoiler area enable easy and easily observable coil threading.

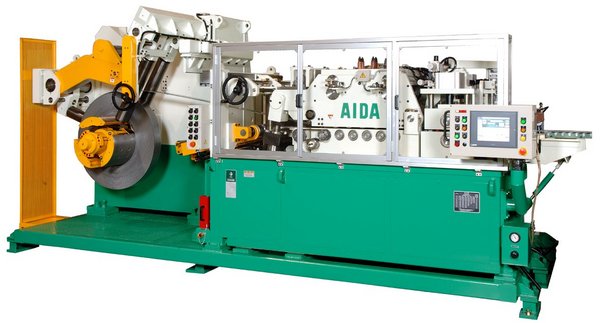

Photograph

Material Width[mm]
70 - 220
70 - 140
Material Thickness[mm]
2 - 8
2 - 10
Coil Weight(MAX)[kg] 3000 × 1
Coil O.D.[mm] φ800 - φ1500
Coil I.D.[mm] φ508
Feed Length[mm] 10 - 500
Feed Speed[m/min]  - 22
No. of Work Rolls Up:5 / Down:5
Passline Height[mm] 1200
Power Source Capacity[kVA] 98
Required Power Source[V,HZ] AC 200/220, 50/60 Hz, 3-phase
Required Air Pressure[MPa] 0.5
Standard Equipment Material end detection device
Semi Auto-Threading
Backstop Rolls
Work ｒoll cleaning feature
Optional Equipment Coil Car
Oiling unit
